Introduction

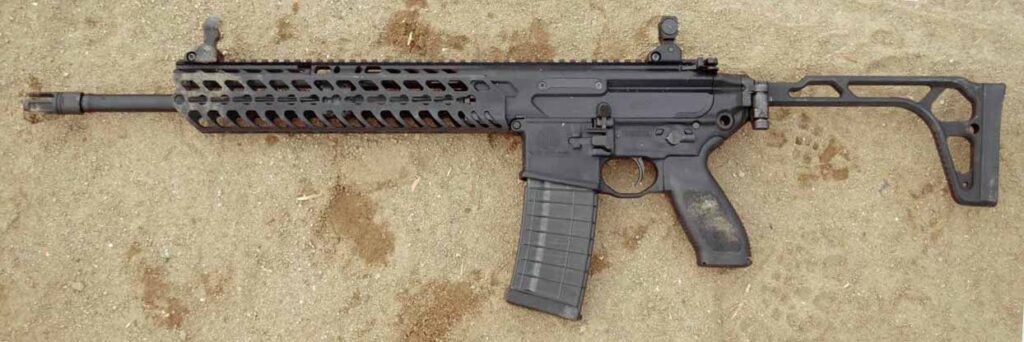

The SIG MCX is a modern firearm platform developed by SIG Sauer, designed to offer extreme modularity, advanced ergonomics and first-rate ballistic performance. Designed as a radical evolution of the AR-15 platform, the MCX is based on a short-stroke piston system with no buffer tube, enabling the use of folding stocks while maintaining exemplary reliability. This rifle has made a name for itself in the ranks of special forces and police units, as well as among civilian shooters looking for a configurable, high-performance weapon.

Design and philosophy

SIG Sauer launched development of the MCX in the 2010s with the clear aim of offering a universal platform, capable of adapting to all situations: close combat, engagement at a distance, discreet shooting with silencers, or even special operations in confined environments.

Unlike the AR-15, which uses a direct gas borrowing system, the MCX employs a short-stroke gas piston system that significantly reduces fouling and improves reliability, particularly with subsonic ammunition or a sound moderator. The no-buffer-tube mechanism allows the attachment of folding, sliding or telescopic stocks, enhancing overall maneuverability.

The MCX is also distinguished by its modular barrel and upper system, enabling the user to change caliber or barrel length without special tools, in just a few minutes.

MCX GIS variants

The SIG MCX is available in several versions, each designed to meet specific operational requirements. Here are the main variants:

MCX Virtus

The MCX Virtus is the most widely distributed version worldwide. It combines military ruggedness with modularity. It is particularly popular with armed forces and intervention units.

Main features :

  • Calibers: 5.56×45 mm, .300 BLK, 7.62×39 mm

  • Available barrel lengths: 9″, 11.5″, 16″.

  • M-LOK extended aluminum handguard

  • Telescopic, folding or fixed stock

  • Détente Matchlite Duo

  • Full compatibility with SIG Sauer SRD silencers

The Virtus version is designed for intensive use, with component life extended to 20,000 strokes for the main parts.

MCX Rattler

The Rattler is an ultra-compact version of the MCX, developed for special forces requiring a compact weapon that can be easily concealed or used in restricted environments (vehicles, CQB operations, discreet carry).

Main features :

  • Calibers: .300 AAC Blackout, 5.56 mm NATO

  • Short barrel: 5.5 inches

  • Folded length under 40 cm

  • Lateral folding stock or brace (AR brace or folding pistol brace)

  • Optimized use with silencer and subsonic ammunition

Its design makes it ideal for operations where manoeuvrability takes precedence over reach or speed.

MCX Spear LT

Launched in 2022, the Spear LT (Lightweight Tactical) improves on the ergonomic design of the Virtus. It retains all its modular features, but adopts a construction optimized for extended wear and dynamic shooting.

Main features :

  • Calibers: 5.56 mm, .300 BLK, 7.62×39 mm

  • New lower with refined grip

  • Approx. 400 g lighter than Virtus

  • New, slimmer handguard

  • MCX Virtus compatible

This is the version favored by sport shooters and intervention units looking for better balance.

MCX Spear (XM7)

The MCX Spear, or XM7, is the next-generation military version selected by the US Army as part of the NGSW (Next Generation Squad Weapon) program.

Main features :

  • Caliber: 6.8×51 mm (high-pressure hybrid cartridge)

  • Barrel: 13-inch (military standard)

  • New reinforced chassis with one-piece handguard

  • Compatible with the new SIG grenade launcher

  • Integrated intelligent optics (Fire Control System)

The MCX Spear represents the new generation of light weaponry for US ground forces, designed to outperform the ballistics of the 5.56 mm in the face of modern protection.

Technical specifications (Virtus standard)

ElementDetail
Available gauges5.56×45 mm, .300 BLK, 7.62×39 mm
Barrel length9 to 16 inches
Operating systemGas piston, short stroke
Weight3.2 to 3.8 kg depending on version
MaterialsAluminium 7075, steel, polymer
StockTelescopic, folding, fixed
HandguardFull-length M-LOK
Controls100% ambidextrous

Ergonomics and modularity

The MCX is distinguished by a level of ergonomics and adaptability rarely seen on a modern long gun:

  • Ambidextrous controls: safety, cocking lever, breech stop, everything is symmetrical.

  • Modular handguard: several lengths available, fully M-LOK compatible.

  • Interchangeable barrel: simple changeover, without presses or complex tools.

  • Adaptable stock: depending on carrying requirements, foldable to the side or extendable.

  • Silencer compatibility: optimized trigger, reduced recoil and noise, adjustable gas regulator.

Comparison with other platforms

ModelSystemSupported gauges
SIG MCXShort piston5.56, 300 BLK, 7.62×39, 6.8×51
HK416Short piston5.56×45 mm only
AR-15Direct impingement5.56×45 mm mainly

The SIG MCX outperforms its competitors in terms of modularity, compactness and thermal management, while maintaining outstanding precision.

Military, police and civilian use

  • Special Forces: adopted in several European countries (Norway, Denmark, Germany) and in many American units (SOF).

  • Law enforcement: Rattler and Spear LT versions are designed for urban combat, discreet carrying and rapid intervention.

  • Civilian shooting: semi-automatic versions are approved in several countries for sport shooting, with a wide range of accessories available.

Conclusion

The SIG MCX is one of the most advanced weapons systems of its generation. Thanks to its versatility, mechanical robustness and intelligent design, it is equally at home on battlefields and civilian firing ranges. More than just a tactical rifle, the MCX embodies a new weapons philosophy, focused on total modularity and operational adaptability.
